Guide To Flash Firmware Android Lenovo A6010 using QFIL Tool.

Guide To Flash Firmware Android Lenovo A6010 using QFIL Tool.


Flash / Install Firmware Android Lenovo A6010. (This guide just for Lenovo A6010) On this guide Guidebelajar will show you how to perform flashing android device on Lenovo A6010. flashing process on android devices is very familiar for android users to solve all problems on android device. Flashing in android is the same way like fresh install on the windows PC, So by perform a flash on Android you will give a new performance like a new phone. One reason that you should perform a flash your android is because your android get bootloop or when you failed to install Stock ROM Mod.

Lenovo A6010 comes with IPS capacitive touchscreen, 16M colors, LCD 5.0 Inches, Android OS, v5.1 (Lollipop) and supported with Qualcomm MSM8916 Snapdragon 410 chipset, Quad-core 1.2 GHz Cortex-A53 CPU, GPU Adreno 306, combined with 2 GB of RAM as their engine. And you can enjoy exciting 8 MP on main camera, and 2 MP on secondary camera. And Lenovo A6010 is released on 2015, October.


Do you know what is bootloop, Ok.. now I will explain to you what si bootloop. Some people say that bootloop is a problem that occured on an android system which the android system could not start up going to the homescreen menu. And it's happened is automatically return to the initial state on the first time when you turn on the Lenovo A6010And the device will stop to display on the smartphone logo.

Lenovo A6010 uses Qualcomm MSM8916 Snapdragon 410 chipset, so to flash this device we do not use flashtool, but we use QFIL tool.

Now, follow the isntruction list bellow, do it with your own risk.

Download Tools for Flash.

  1. You must download and install USB Driver for Lenovo on your windows computer or PC. Here
  2. http://www.needrom.com/wp-content/uploads/2015/08/LenovoUsbDriver-1.0.122.zip
  3. QPST-2.7.422-qfil-qcom-Upgrade-Tool-20140422  Here
  4. http://www.needrom.com/wp-content/uploads/2015/08/QPST-2.7.422-qfil-qcom-Upgrade-Tool-20140422.zip
  5. Download Qualcomm HSUSB USB COM Drivers Here
  6. http://www.needrom.com/wp-content/uploads/2015/08/Qualcomm-HSUSB-USB-COM-Drivers2.zip
  7. Download ROM ;
    • Lenovo_A6010_S029_150902_16G_ROW Here
      https://drive.google.com/file/d/0B2I5z1mFfUpcbVVjVWR5ME5QblE/view?usp=sharing

      Or

      http://filesharred.blogspot.com/p/firmware-lenovo-a6010.html
  8. To download all file above you must be a registered user, except ROM File.

Guide -to flash Stock ROM Lenovo A6010 using QFIL tool.

  1. To flash your Android Lenovo A6010, your battery must fully 100% charged,
  2. Flashing process will erase / wipe / delete all userdata and file stored on phone memory. We recommend to backup all data. see this guide how to backup your android data.
    • Back Up 1
    • http://guidebelajar.blogspot.com/2015/12/guide-to-backup-data-rooted-android-titanium-backup.html
    • Back Up 2
    • http://guidebelajar.blogspot.com/2015/12/guide-back-up-and-restore-data-android.html

    • Back Up 3
    • http://guidebelajar.blogspot.com/2015/09/guide-how-to-backup-android-contact-to.html
    • Back Up 4
    • http://guidebelajar.blogspot.com/2015/05/guide-to-backup-and-restore-sms-on.html
  3. Install all Prerequisites file and tool above.
  4. Then, turn off your Android Lenovo A6010.
  5. Now, enter your Lenovo A6010 into download mode. you can do it by  :
    • Press the Volume Up button and keep holding it while connecting it to the computer/laptop using USB cable.
  6. Lenovo A6010 will vibrate one time, and you will see black screen.
  7. On your computer/laptop you might see under Device Manager > Qualcomm Lenovo HS-USB QDLoader 9008.
  8. Open device manager on your computer, There should be device called
    •  Qualcomm HS-USB QDLoader 9008 (COMXX)
      flash lenovo s60 - Qualcomm HS-USB QDLoader 9008
      flash lenovo s60 - Qualcomm HS-USB QDLoader 9008

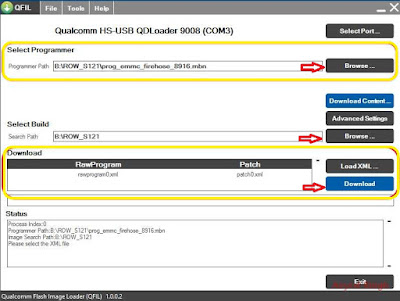

  9. Now Run utility QFIL from your computer.
  10. In the Programmer path specify the path to the file prog_emmc_firehose_8916.mbn for this click browse.
  11. Then on the Select Build search path to the folder with the firmware by click on Browse button. in this case we use file extracted from S60-a_S227_150806_ROW-QPST-QFIL
  12. Then Select file program (ex : prog_emmc_firehose_89XX. mbn) and click open.
  13. flash lenovo s60 - using qfil
    flash Lenovo A6010 using QFIL tool.
  14. Then click on the Load XML …in the window that opens, select one by one –
    • For example
    • first rawprogram0.xml
    • click “Open”
    • then patch0.xml
    • also click “Open.”
  15. Make sure all inputs is correct and click Download under Load XML button.
  16. Now wait the process to run about 5 to 10 minutes:
  17. The Lenovo A6010 device should restart the process of filling in the successful firmware and boot into Android OS.
  18. Warning, on the first boot your Lenovo A6010 will take about up to 15 minutes. So, don't wory about it
  19. Finish.
